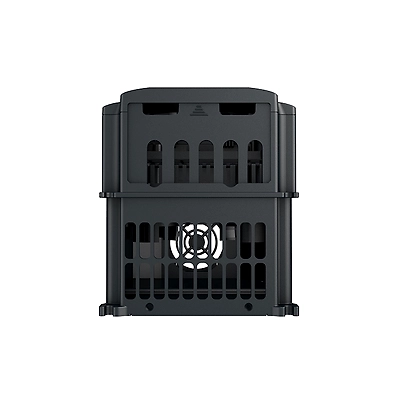

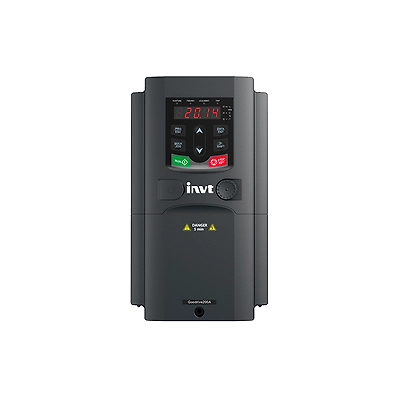

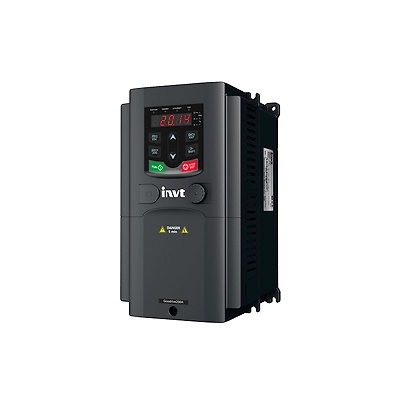

INVT GD200A VFD 1 HP T0 500 HP

High performance

1.More Accurate Motor Autotuning

2.Advanced open loop vector control

3.Perfect voltage and current control, reducing the fault protection times

4.Multiple braking modes and instant stopping

5.0.75kW~500kW(Three Phase 400V)

Features

1.VF and Sensorless Vector Control

2.Up to 0.5Hz/150% starting torque

3.Built-in braking unit (≤30kW), Optional external braking unit (≥37kW)

4.External LED keypad to copy parameters(≥18.5kW), Standard membrane keypad design(≤15kW), Optional LCD keypad provided

5.Standard C3 filters; Optional C2 filters

6.Accurate parameters auto tuning and better motor drive

7.Simple water supply function

8.Support G/P dual rating

9.Customization services provided (like PTC )

10.CE requirements certified

Applications

Air Compressor, Oil, Warming and Water Supply, Plastics Machine, Mine, Fans and Water Pumps.
